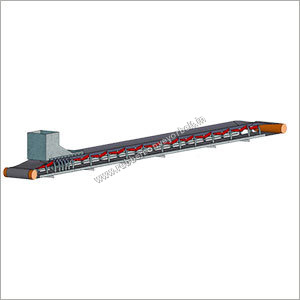

Conventional Conveyor Belt

Conventional Conveyor Belt
Conventional Conveyor Belt
Product Code : 16
Product Description

Conventional Conveyor

We have emerged as the foremost manufacturer, exporter and supplier of Conventional Conveyor Belt. For the fabrication of this belt, we make use of optimum quality raw material and advanced technology that ensures its durability and accurate assembling. In addition to this, our offered belt undergoes several tests to assure its flawlessness before supplying to the client’s end. Corrosion resistance, high tensile strength, durability, excellent performance, etc., are quality attributes of the offered Conventional Conveyor Belt, which make it popular among clients.



Specifications:

  • These belts are primarily used where bulk materials must be conveyed along horizontal and vertical curves in confined spaces, and/or where the environment has to be protected resp where spillage must be avoided.

  • The belt can negotiate tight horizontal and vertical curves.

  • This eliminates or reduces transfer points, which is a big cost saving, Inclinations of up to 350 can be dealt with.

  • Pipe conveyor belts protect the conveyed material from external influences like rain and wind and protect the environment by avoiding spillage of the conveyed materials.

  • Even in the bottom run, no spillage will occur, because the carry side is inside of the tube.

  • The idler supports can be spaced farther apart, because it is self-supporting.

  • An additional conveyor cover is not necessary.


Some of the salient features of pipe conveyor belts:

  • Dust and spillage free transportation

  • Low noise emissions

  • Inclines up to 35 degree

  • Multiple feed and discharge points

  • Simultaneous conveying of different materials in both directions

  • Low power consumption

  • Horizontal and vertical curves with radio to 45 meters


Technical Indexes


Pipe dia. (mm)

Load area (m2) (75%)

Belt Speed (m/min)

Conveying Capacity (m3/hr)

Max. lump size (mm)

Horizontal Min. length (M)

Equivalent Traditional Conveyor Belt

100

0.06

100

36

30

15

300

150

0.13

120

95

30-50

18

300-450

200

0.24

130

185

50-70

20

500-600

250

0.37

140

310

70-90

23

600-750

300

0.52

150

475

90-100

25

750-900

350

0.72

175

750

100-120

30

900-1050

400

0.95

200

1140

120-150

35

1050-1200

450

0.150

225

2000

150-200

50

1500-1800

500

0.215

250

3200

200-250

50

100-1800

550

0.285

275

4700

250-300

60

1800-2000

600

0.425

300

7650

300-400

70

2000-2400
