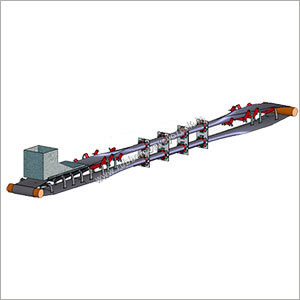

Pipe Conveyor Belts

Pipe Conveyor Belts
Pipe Conveyor Belts
Product Code : 17
Product Description

Pipe Conveyor Belts

We are the prominent manufacturer, exporter and supplier of optimum quality Pipe Conveyor Belts. Assembled with advanced technology and graded material, this belt is widely used in various industrial applications. Our offered belt is highly praised by our clients due to its perfect functioning, dimensional accuracy, high efficiency, less maintenance, corrosion resistance and longer service life. Moreover, we provide these Pipe Conveyor Belts to our clients in various specifications in accordance with the details provided by them.



Specifications:

  • Pipe or tube conveyor belts are primarily used where bulk materials must be conveyed along horizontal and vertical curves in confined spaces, and/or where the environment has to be protected resp where spillage must be avoided.

  • The belt can negotiate tight horizontal and vertical curves.

  • This eliminates or reduces transfer points, which is a big cost saving. Inclinations of up to 35o can be dealt with.

  • Pipe conveyor belts protect the conveyed material from external influences like rain and wind and protect the environment by avoiding spillage of the conveyed material.

  • Even in the bottom run, no spillage will occur, because the carry side is inside of the tube.

  • The idler supports can be spaced farther apart, because it is self-supporting.

  • An additional conveyor cover is not necessary.

Features:

  • Dust and spillage free transportation

  • Low noise emissions

  • Inclines up to 35o

  • Multiple feed and discharge points

  • Simultaneous conveying of different materials in both directions

  • Low power consumption

  • Horizontal and vertical curves with radii to 45 metres

Technical Indexes

Pipe dia.
(mm)

Load area
(m2) (75%)

Belt speed
(m/min)

Conveying
Capacity
(m3/hr)

Max. lump
size (mm)

Horizontal
Min. length(M)

Equivalent
Traditional
Conveyor Belt

100

0.006

100

36

30

15

300

150

0.013

120

95

30-50

18

300-450

200

0.024

130

185

50-70

20

500-600

250

0.037

140

310

70-90

23

600-750

300

0.052

150

475

90-100

25

750-900

350

0.072

175

750

100-120

30

900-1050

400

0.095

200

1140

120-150

35

1050-1200

450

0.150

225

2000

150-200

50

1500-1800

500

0.215

250

3200

200-250

50

1500-1800

550

0.285

275

4700

250-300

60

1800-2000

600

0.425

300

7650

300-400

70

2000-2400
