Steel Cord Conveyor Belts

Steel Cord Conveyor Belts
Steel Cord Conveyor Belts
Product Code : 24
Product Description

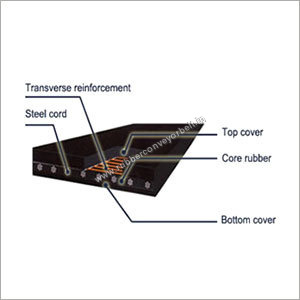

Steel Cord Conveyor Belt

We are recognized as the manufacturer, exporter and supplier of superior quality Steel Cord Conveyor Belts. For the fabrication of these products, we use the finest quality raw material and sophisticated technology. Known for its robust construction, high tensile strength, corrosion resistance, dimensional accuracy and extended durability, the offered product is highly acknowledged by the clients. Apart from this, the offered Steel Cord Conveyor Belts are available in various specifications as per the varied needs of clients.



Specifications:

  • Used in coal, ore, port, metallurgical, power and chemical industries, suitable for long distance and heavy load transportation of materials.

  • Standards offered are DIN22131, EN ISO 15236, SANS1366 and AS1333.

Features:

  • General, Fire-resistant

  • Cold-resistant

  • Abrasion-resistant

  • Heat-resistant and

  • Chemical-resistant


ST Belt Splice: Splice dimensions as per DIN 22131


ST1000

ST1250

ST1600

ST2000

ST2500

Minimum step length mm)

300

350

400

450

500

Splice length (mm)

600

650

750

1150

1350


ST3150

ST3500

ST4000

ST4500

ST5000

Minimum step length (mm)

650

650

750

800

900

Splice length (mm)

1650

2350

2650

2800

4050

Steel Cord Belt Selection

Belt Specifications

ST1000

ST1250

ST1600

ST2000

ST2500

ST3150

ST3500

ST4000

ST4500

ST5000

ST5400

Tensile Strength (N/mm)

1000

1250

1600

2000

2500

3150

3500

4000

4500

5000

5400

Max. Diameter of Cord (mm)

4.1

4.9

5.6

5.6

7.2

8.1

8.6

8.9

9.7

10.9

11.3

Pitch (mm) + 1.5

12

14

15

12

15

15

15

15

16

17

17

Min. Rubber Cover Thickness (mm)

4

4

4

4

5

5.5

6

6.5

7

7.5

8

Width (mm)

Tolerance (mm)

Cord Number

500

+5

39

34



















650

+7

51

44

40

51

40

40

40

40

37





800

+8

64

55

50

64

50

50

50

50

46

43

43

1000

+10

81

69

64

81

64

64

64

64

59

55

55

1200

+10

97

84

77

97

77

77

77

77

71

66

66

1400

+12

114

98

90

114

90

90

90

90

84

78

78

1600

+12

131

112

104

131

104

104

104

104

96

90

90

1800

+14

147

127

117

147

117

117

117

117

109

102

102

2000

+14

164

141

130

164

130

130

130

130

121

113

113

2200

+14

181

155

144

181

144

144

144

144

134

125

125

2400

+15

197

169

157

197

157

157

157

157

146

137

137

2600

+15

214

184

170

214

170

170

170

170

159

149

149

2800

+15

231

198

184

231

184

184

184

184

171

161

161

3000

+15

247

212

197

247

197

197

197

197

184

172

172

3200

+15

264

227

210

264

210

210

210

210

196

184

184
